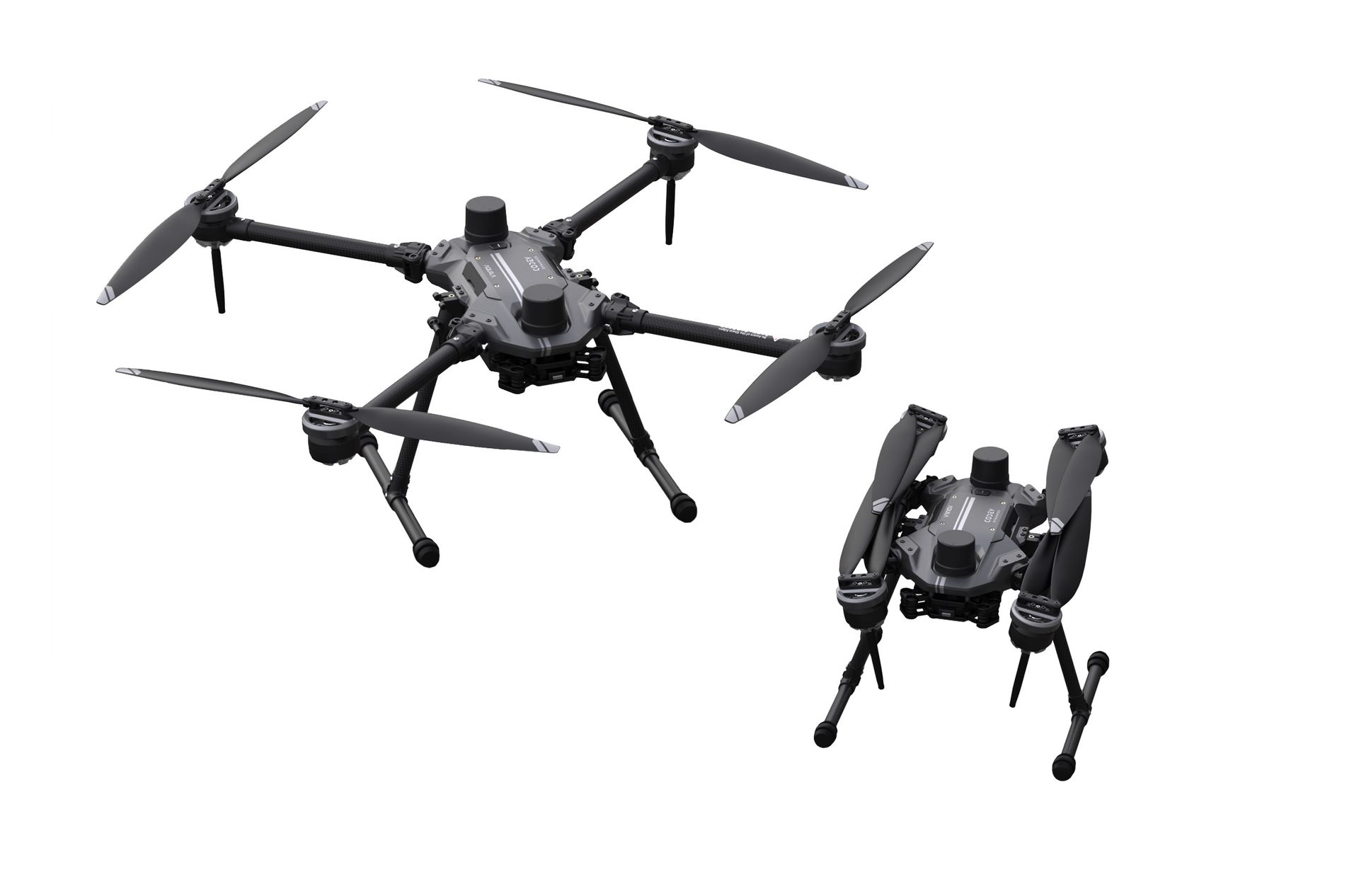

Aquila 3F

MTOM

6 kg.

FLIGHT TIME

70 min.

OPEN SOURCE

Yes

Interchangeable Standard payloads

Rhythm 1 (R1)

View details

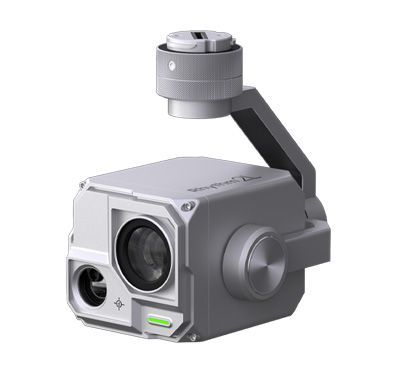

Rhythm 2L (R2L)

View details

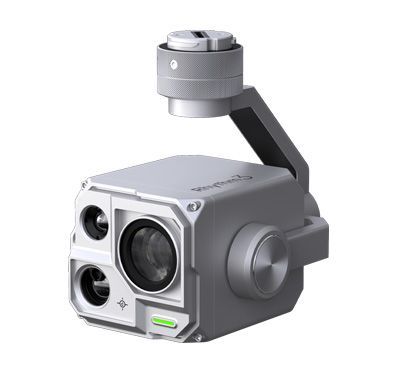

Rhythm 3 (R3)

View details

Key Features


  • 1-3 kg payload solution platform
  • Unlimited open hardware and software for 3rd party
  • Dual RTK redundant
  • PPK function default
  • Up to 60- 75min flight time
  • 7,5 KM video and telemetry control range
PRODUCT REQUEST

Inspection

Mapping

Rescue

Security

quick response

Law

Enforcement

Surveillance

  • Key Features

    • 1-3 kg payload solution platform
    • Unlimited open hardware and software for 3rd party
    • Dual RTK redundant
    • PPK function default
    • Up to 60- 75min flight time
    • 10KM video and telemetry control range

  • ideal for

    • Inspection
    • Mapping
    • Security quick response
    • Law Enforcement

Technical Data

Aircraft
Product name Aquila 3F
Type Quadcopter
Size 735 mm diogonal Wheel
Weight 2,85 Kg (with battery)
Max payload capability (Kg) 3 kg
Max flight time 80 min. (no payload)
Max payload flight time 60 min.
Telemetry and vidio stream range 7,5 Km
Motor type 5206
Motor drive 6S 20A FOC ESC
Propeller 19" foldable low noise propeller
GPS Dual RTK redundant positioning system with heading function
I.O. Function H7-based Phalanx G1, ETH Data Switch-Hub Exterior UART-Interface
Wind resistance 15 m/s
Max fly speed 12 m/s (20 m/s with software enabled)
Battery
Capacity 12Ah 6S LiPo battery (UN38.3)
Charging Temp 10°C - 45°C
Configuration 6S1p
Operating Temp -10°C - 60°C
Voltage 23.1V
Max. Discharge / charge rate 5C / 1C
Weight 1.2 Kg
