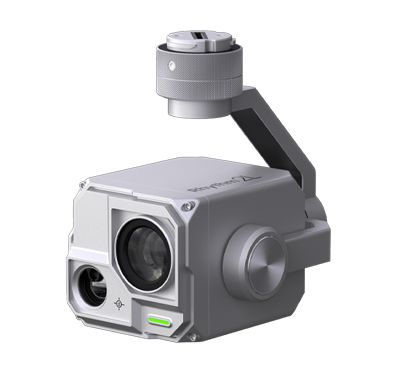

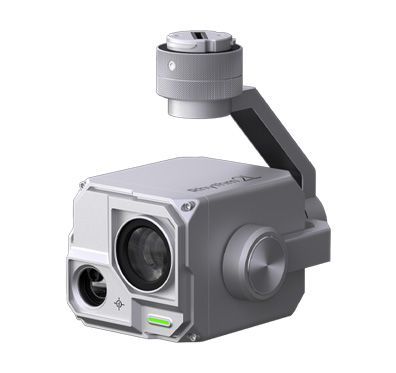

Rhythm 2L
| Specifications | |
|---|---|
| Weight | 815g |
| Size | 150*112*153mm |
| IP rating | IP44 |
| Power input | 24V, 10W to 24W |
| Operating Temperature | -10°C to 50°C |
| Gimbal control range | Pitch: -90° to +20° Pan: 360° limitless |
| Mount type | P-Mount |
| Min control accuracy | 1° |
| Angel control accuracy | ±0.01° |
| Stream link | rtsp://192.168.2.119:8554/eo |
| File servicer | Support |
| Geo-tag | Support |
| Target location processing | Support |
| Protocol | MAVLINK 2.0 |
| Edge computing performance | |
|---|---|
| SOM | Nvidia Jetson Xavier NX 16G |
| AI performance | 21 TOPS (INT8) |
| GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores |
| GPU Max Freg | 1100 MHz |
| CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit 6MB L2 + 4MB L3 |
| CPU Max Freg | 2-core @ 1900MHz; 4/6-core @ 1400Mhz |
| Memory | 8GB 128-bit LPDDR4x; 59.7GB/s |
| Storage | 16GB eMMC 5.1 |
| EO camera | |
|---|---|
| Sensor | 4K SONY 1/2.5 Exmor R CMOS Sensor (8.51MP) |
| Recommended illumination | 100 to 100,000 lx |
| Lens | f = 4.4 mm to 88 mm; F2.0 to F3.8 |
| Horizontal Viewing Angel | Approx. 70.2˚ to 4.1˚(Image stabilizer OFF) Approx. 60.0˚ to 3.5˚(Image stabilizer ON) |
| Zooming | 30x optical zoom with SONY@FPSR (Full Pixel Super-Resolution Imaging Technology) 90 Hybrid zooming without quality lose |
| Focus | MF/AF-C/AF-S |
| EV compensation | Auto/Manual -10.5 to +10.5 dB |
| Noise reduction | 6 steps ( 3DNR , 2DNR 3DNR separate mode) |
| Spot AE | Point support |
| Electronic shutter speed | 1 to 1/10000 sec. |
| ISO | Auto/Manual 500~128000 |
| Video resolution | 3840×2160@30fps, 20-40M |
| Video format | mp4 |
| Image quality | 3840x2160 |
| Image format | Jpeg |
| Storage temperature/ Humidity | -20°C to 60°C/20% to 95% |
| Operating temperature/ Humidity | -5°C to 60°C/20% to 80% |
| Range finder | |
|---|---|
| Wave | 905nm (Class 1) |
| Measure range | 5-1200 m(> D=12 m, 20% reflection rate) |
| Measure accuracy | 6-60m ±1m, 70-100m±1.5m 110-400m±2m, 400m above±0.4%m |
| Laser angle | 4~10 mrad |
| Measure HZ | ≤1 Hz |
| Laser output size | 6 mm |
| Reception size | 17 mm |
