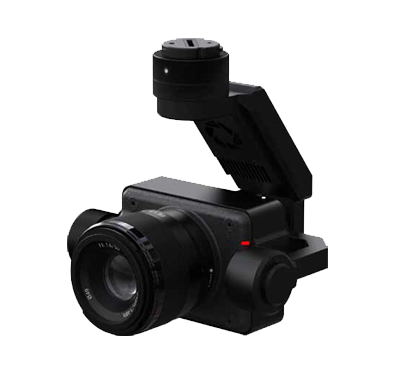

Rhythm 1

Functions highlights


  • 3-Axis payload, 2- Optical sensors mapping camera
  • High-Precision 6-Axis MEMS MotionTracking® IMU
  • Designed for SONY LR1
  • Lens option(default): 25mm, 35mm,50mm
  • Support geo-tag processed recorded file
  • Embedded with Nvidia Xavier NX edge AI computer

Download Rhythm 1 Flyer

Download pdf

Rhythm 1

Designed for SONY ILX-LR1


Cinematography, Photography, Mapping and Inspection

Inspection

Mapping

Specifications
Weight (without lens) 700g
Size (without lens) 156*120*169mm
IP rating IP44
Power input 24V, 10W to 24W
Operating Temperature -10°C to 50°C
Gimbal control range Pitch: -90° to +20° Pan: 360° limitless
Mount type P-Mount
Min control accuracy 1°
Angel control accuracy ±0.01°
Geo-tag Support
Protocol MAVLINK 2.0
Edge computing performance
SOM Nvidia Xavier NX 16G
AI performance 21 TOPS (INT8)
GPU 384-core NVIDIA VoltaTM GPU with 48 Tensor Cores
GPU Max Freg 1100 MHz
CPU 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
CPU Max Freg 2-core @ 1900MHz 4/6-core @ 1400Mhz
Memory 8GB 128-bit LPDDR4x @ 1600 MHz 51.2GB/s
Storage 16 GB eMMC 5.1
Camera
Sensor 35mm FF(35.7x23.8mm) Exmor R CMOS
Number of pixels (effective) Still images: Approx. 61.0 megapixels max Movies: Approx. 50.8 megapixels max
Camera type Interchangeable lens digital camera
Lens mount E-mount
Supported Lenses 25mm, 35mm, 50mm
Operating temperature 0°C to 40°C/32-104°F
